Products - Equipments
  Equipment for Pharma - Food - Chemical Applications

  Powder filling Machine
The machine is very simple to operate and deliver an accuracy of +/- 1 gm. It has a filling range of 50-500 gm which can be easily set. It is light in construction and portable.
Specifications:
Power supply single phase 230VAC.
All contact parts in S.S.316/SS304
Auger type filling.
Accuracy +/- 1 gm
One touch Start by a foot-switch
Filling capacity up to 500gms
High output and increased efficiency.

24 V DC stirrer motor for
stirring powder in the hopper

  4 Head Liquid Filling Machine
Highly versatile machine for filling foamy as well as other liquids into containers. It has a unique bottle separation method in which no turret or holding slides are used. This machine fills the liquid using the Syringe principle and is very easy to use. Turntable is provided for bottle filling
Specifications
Variable speed conveyor.
Fill volume 300 ml
Fill speed 35 bottles per minute
Suitable for filling all types of liquids
6 head fitting option
No bottle no fill sensor


  Pellet Processing Technologies

  Screw Extruders
Process Converts formulated powders into cylindrical shaped and defined sizes of extrudates. This are low pressure and cGMP radial, conical and axial die confrigurated Extruders.
Die Roller Extruders
Die roller Extruders operates with two rollers. Knurling roller pushes formulated feed material through the perforation of other perforated die rollers. The extrudates are cut to length with adjustable cutter provided with perforated roller.

  Spheronizers
Our Highly successful spheronizers Consist of high speed rotary friction disc, provided at the bottom of Cylinderical bowl. Charged extrudates breaks into segements and with high velocity spherical pellets are formed.



Clean Room Equipments
IPA Dispenser
CIP / SIP System
Operation:
Put your hands into cleaning area interior
The sensor detects your hands and dispense 0.5ml disinfectant solution which rapidly evaporates
Technical Specifications
Electric Supply : 220V, 60Hz
Dimension (WxDxH): 300mm x 240mm x 275 mm
Weight :5 Kg. Approx
Convenient: Easy to install, oprate and maintain

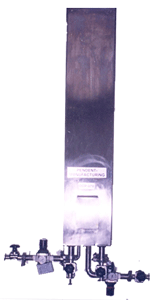

A Complete Mixing Unit and Hose Station for thoroughly blending of hot and cold water in any desired proportion. Its rugged, stainless steel construction and operation ease combine to make it essential equipment where wash down operation are necessity. The unit is complete in itself with built in hose rack, control valve, check valve, neoprene hose and water saver nozzle.

Advantages:



Low initial cost, low maintenance and user friendly mechanism. Ease of installations and Quick to get hot water in plant where steam and water is available.



Sanitary Double Seal Drain   Utility Pendent
Where ever there is waste water to be removed quickly and completely for hygienic reason our drains made of Stainless Steel suits to toughest requirements and withstand sever conditions.
These are SS 304 Grade with buffed and finish as per pharma standard. We have wide range of product to suit to your applications







Applications:


To get service utilities into operational area in a closed configuration for easy and direct access maintaining barrier between utility area and production floor.

Pendent are designed to take PW, WFI, STEAM, NITROGEN And other utilities of various sizes with suitable end connections.These are SS 304/316L outer shell and moc of utility piping as per their properties and statutory requirement and argon welded, buffed as per Pharmaceutical standard.
